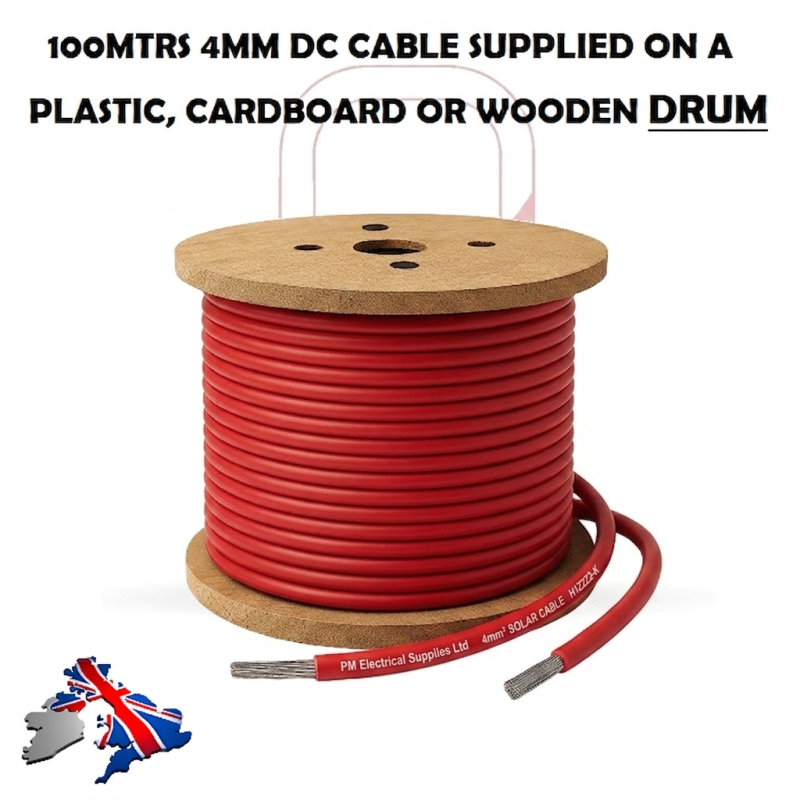

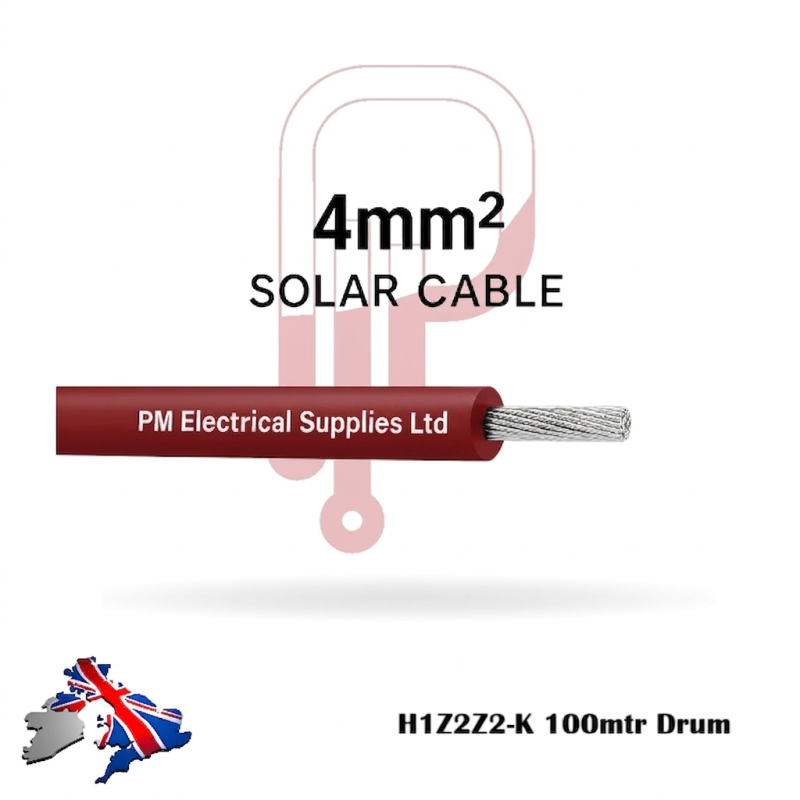

Solar DC PV Cable 4mm Single Core RED on DRUM

This dc cable is supplied on a DRUM not a coil like others

Double insulated, electron-beam cross-linked cables for photovoltaic power applications.

Construction:

Conductor Tinned fine copper strands acc. to VDE 0295 / IEC 60228, Class 5

Insulation

XLPO, flame retardant, halogen free, electron-beam cross-linked

Jacket

XLPO, flame retardant, halogen free, electron-beam cross-linked

Double insulated Electron-beam cross-linked compounds

UV, ozone and hydrolysis resistant, Halogen free, flame retardant, Flexible, easy to strip

Bending radius 4 x outer diameters

Temperature range -40 °C to +90 °C, Max. temp at conductor +120 °C

Short circuit temperature 250°C for 5s

Flame-resistant test acc. to EN 60332-1-2

Anticipated service life 25 years

Compatible to all connectors

Meter marking — easy installation

Rated voltage DC 1500 V, AC Uo/U: 1.0/1.0 kV

Max. permitted voltage Uo 1800 V DC

Insulation resistance 1000MQ/KM

Test Voltage (AC) AC 6.5kV, 50Hz, 5 min

EN50618 & IEC62390 Approval

TUV Certified
